Spinder's telescopic trafic gate Slider
Cow traffic

Telescopic gates: Slider

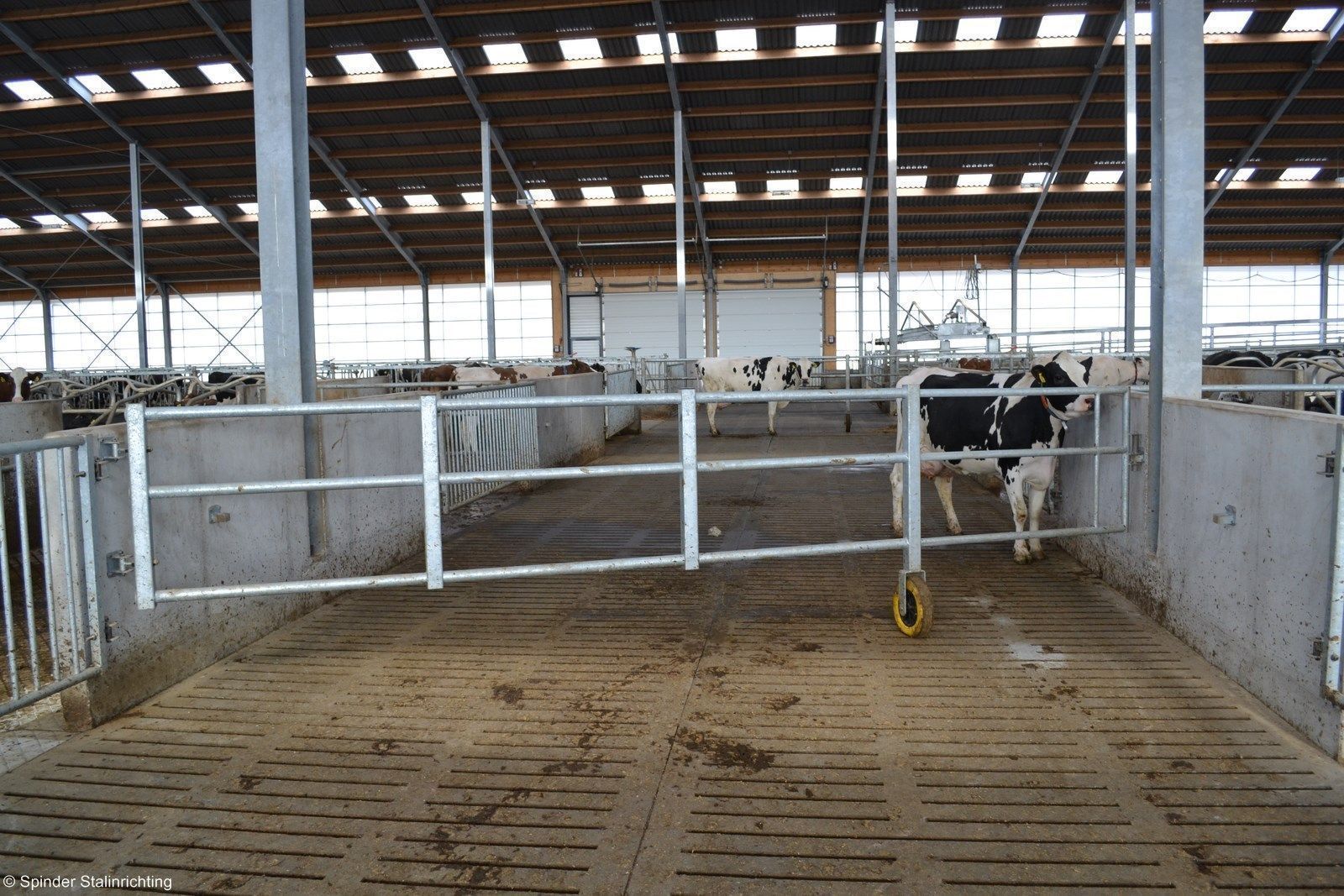

The telescopic gate is a flexible solution in places where it must be possible to close different widths of aisles with one and the same gate in a rotatable manner. This gate is also ideal for making crossings over the feeding passage, closing waiting areas, or as intermediate barriers in spacious straw-bedded pens. The optional anti-puncture support wheel runs smoothly, both on a flat concrete floor and on slatted floors. You cannot use a castor wheel in straw-bedded pens or if fixed manure scapers have been installed. Fit an angle brace instead.

Slider telescopic cow traffic gate with 3 horizontal bars

With 45 cm of free space between both lower horizontal bars there is enough width to allow you step quickly through the gate.

The telescopic gate Slider comes standard with adjustable pivoting points and a universal locking point, supplied complete for mounting to support posts.

Lengths

  • 95 – 135 cm*
  • 135 - 200 cm*
  • 200 - 300 cm
  • 250 - 400 cm
  • 300 – 500 cm
  • 400 – 600 cm


Slider telescopic cow traffic gate with 2 horizontal bars

This gate gives enough free space (80 cm) under the gate for a manure robot passing through. With a gate height of 57 cm, this would even allow mounting over a drinking water reservoir.

Lengths

  •   95 – 135 cm*
  • 135 – 200 cm*
  • 200 – 300 cm
  • 250 – 400 cm
  • 300 – 500 cm

* the short Slider telescopic gates are supplied without adjustable pivot point.

The telescopic gate with a range of 400 - 600 cm must be fitted with a castor wheel or an angle brace set. The shorter telescopig gates van be fitted with these accessories for extra stability and/or ease of working.

Product
  • Spinder telescopic gate: Slider
  • Spinder telescopic gate: Slider
  • Spinder telescopic gate: Slider
  • Spinder telescopic gate: Slider
  • Spinder telescopic gate: Slider

Specifications Slider

Technical data

  • heavy, continuous frame
  • heavy, adjustable pivoting points M20
  • Extendable part with universal locking point
  • including heavy adjustable pivoting points and threaded straps for mounting on support post
  • including locking point and threaded straps for mounting on 2½" support post


Optional accessories

  • extra locking point
  • various mounting materials

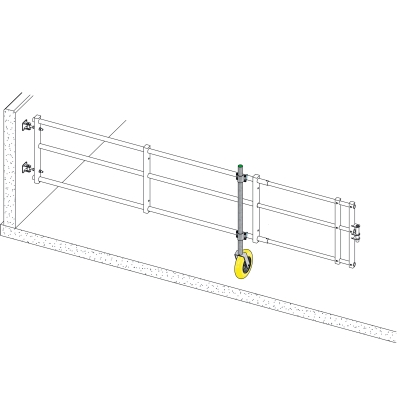

  • support wheel
  • shoring set for partition barrier (a support wheel cannot be used in straw –bedded pens or with fixed manure scrapers)
Specifications Slider

More information

All information about the Telescopic gates: Slider can be found here:

Cow Traffic Catalogue

Technical drawings

Technical drawings are available for installing the telescopic gates: slider. Click on the link below to download the pdf file.

Requesting information?

Would you like to receive information about the Telescopic gate: Slider? We will be happy to tell you what we can do. Fill in your details here, and we will contact you.

Information request Telescopic gate: Slider

Your Spinder dealer

Spinder works exclusively with dealers who share the same core values: quality, reliability and professionalism. There is always a dealer in your region.

Find your Spinder dealer here
