Spinder Openline Swedish feed front
Eating

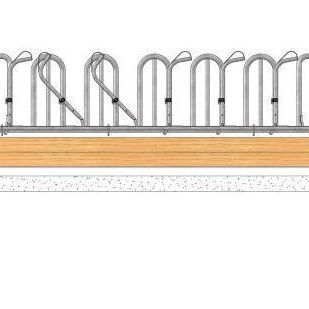

Openline self-locking feed front

As the word Openline suggests, these are feed fronts with an open top; the head goes in from the top. These are the Swedish feed fronts that have been known for many years. Ideal for animals with horns.

All Openline feed fronts are self-locking with central controls and have an enlarged movable bar to prevent collars from being caught.

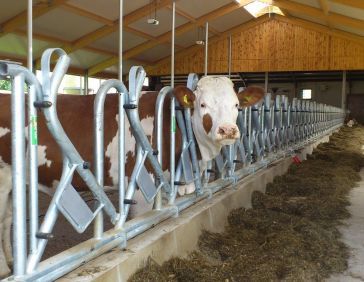

Based on the demand for a more robust and larger version, Spinder developed this type of fence into the heavy Rubos version with a built-in safety function and silencer. The feed opening width is 70 cm to suit the larger cows.

The operating modes of the feed front:

  • open position, the animals can freely move their heads in and out of the feed front
  • self-locking position where the animals lock themselves in when they start eating
  • centrally releasing all positions
  • individually releasing an animal by sliding up a drop pin into the tilting bar
  • for Rubos only: individually releasing an animal from the safety opening (bottom opening) by sliding up a drop pin into the tilting bar

  • robust construction
  • suitable for horned cows
  • spacious safety opening
  • multiple operations
  • low passage for the dairy farmer
Product
  • Openline self-locking feed front
  • Openline self-locking feed front
  • Openline self-locking feed front
  • Openline self-locking feed front
  • Openline self-locking feed front

Specifications Openline

Various Dimensions

The Openline self-locking feed front Rubos is available in various sections:

  • For large stock: from 2 (145 cm) to 5 (355 cm) feed openings, with feeding place widths of 70 cm.


The Openline Swedish feed front for large stock is available in various sections:

  • For large stock: from 3 (180 cm) to 5 (325 cm) feed openings, with feeding place widths of 65 cm.
  • For large stock: from 2 (150 cm) to 4 (300 cm) feed openings, with feeding place widths of 75 cm

The age is from about 22 months, the neck width is 19 cm.

Assembly

Mounting to the 2 1/2" support posts is done with the universal fasteners. It is possible to increase the length of a feed front section by 5 cm and if this is not sufficient, Spinder have longer fastening parts available.

By mounting a so-called hinge assembly, any feed front section can be turned into a rotating gate. The locking mechanism of a rotating feed front is operated separately.

Optional accessories

  • support post
  • protective sleeve
  • floor mounted support post
  • stopper
  • feed front fasteners
  • operating handle
  • hinge assembly and castor wheel for rotating gate



All information concerning the Openline feedfront can be found in our eating catalogue

Specifications Openline

Technical drawings

Technical drawings are available for installing the Openline feed front. Click on the link below to download the pdf file.
