Spinder Limoline self-locking feed front
Eating

Limoline self-locking feed front

Model Limoline is the heavier and raised version of the Baseline self-locking feed front for large stock. In terms of dimensions, this feed front is in line with the most complete Spinder safety feed front.

Easy operation

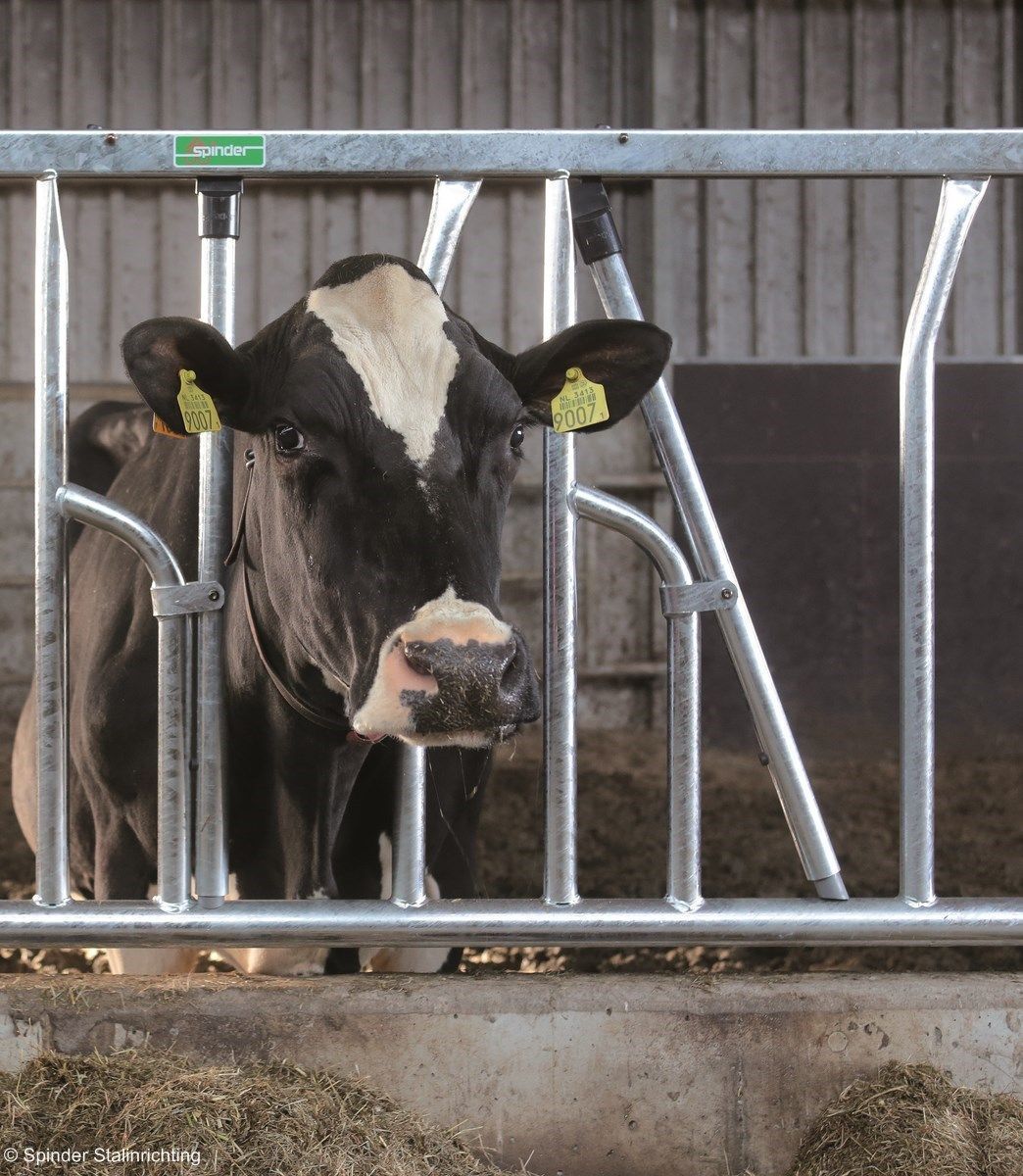

This self-locking feed front with a hidden locking mechanism has a locking system that is fully integrated in the especially developed upper section. Only the push button for operating the locking mechanism sticks out from the top of the profile. This allows the animals to be unlocked with a simple movement by hand. The feed front has been designed and constructed in such a way that locked-up animals cannot free themselves.

Important features

  • Great catching performance thanks to the ultralight-acting locking mechanism.
  • When in the closed position, it will be possible to release the individual animals with one simple hand movement.
  • The locking mechanism is not disrupted by moisture and dirt.

  • large 40 cm head opening
  • extra-heavy model with a 2” lower bar and all 11/4” vertical bars
  • extra high model of 104 cm
  • low-noise
  • locking mechanism is entirely hidden
  • ear tag friendly
  • easy operation
Product
  • Limoline feed front
  • Limoline feed front
  • Limoline feed front
  • Limoline feed front
  • Limoline feed front

Specifications Limoline

Various dimensions

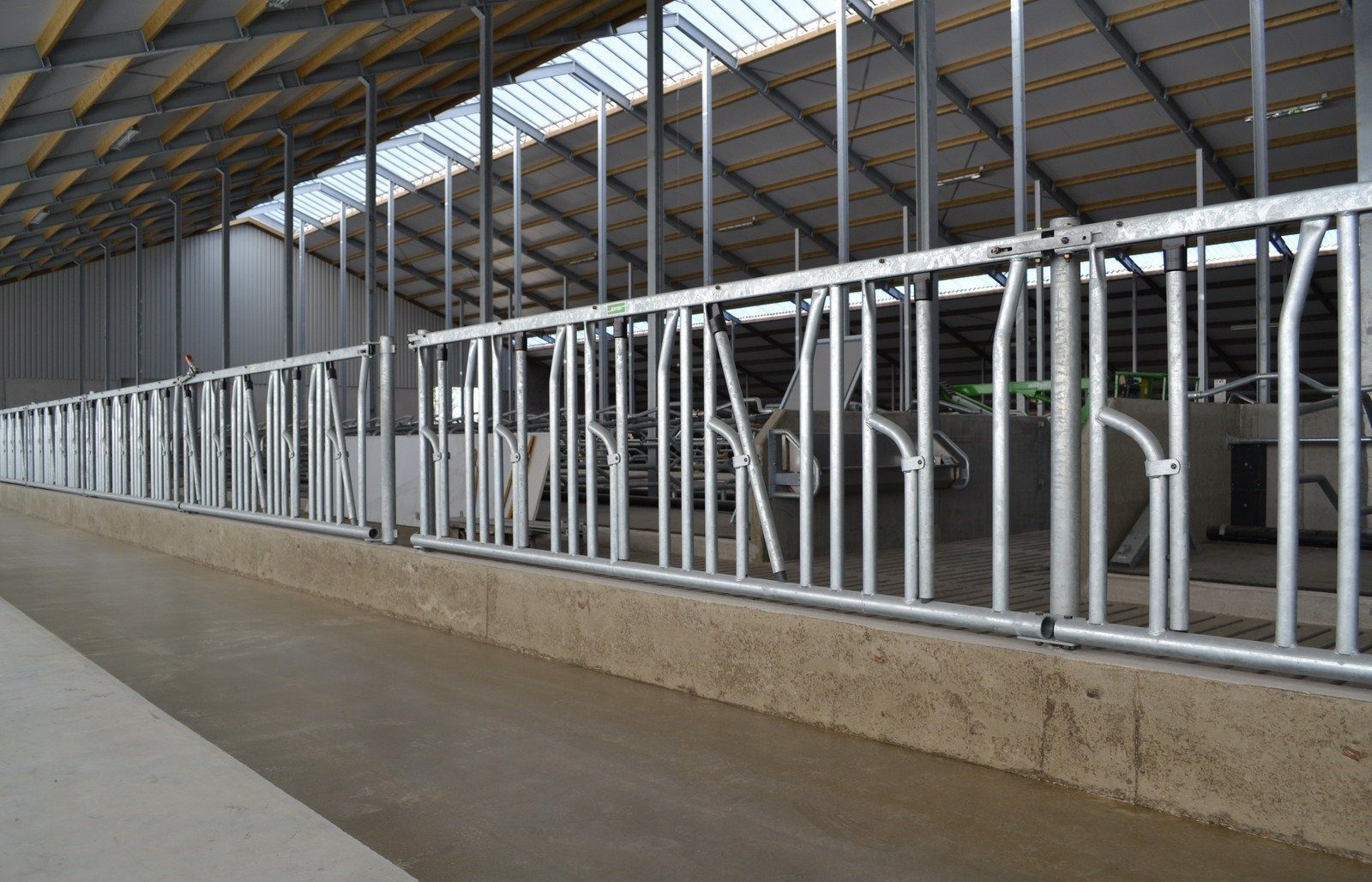

The Limoline self-locking feed front is available in various sections:

  • For large stock: from 2 (136 cm) to 7 (495 cm) feed openings, with feeding place widths of 65, 70 and 75 cm.

The standard length of a feed front section is 325 cm. However, several sizes are available, depending on the desired number of feed openings and the feeding place width. By combining feed front sections and attachments, almost all rafter sizes can be effectively filled in.

Assembly

Mounting to the 2 1/2" support posts is done with the universal fasteners. It is possible to increase the length of a feed front section by 5 cm and if this is not sufficient, Spinder have longer fastening parts available.

By mounting a so-called hinge assembly, any feed front section can be turned into a rotating gate. The locking mechanism of a rotating feed front is operated separately.

Optional accessories

  • support post
  • protective sleeve
  • floor mounted support post
  • stopper
  • feed front fasteners
  • operating handle
  • hinge assembly and castor wheel for rotating gate



All information about the Limoline feedfront can be found in our eating catalogue

Specifications Limoline

Technical drawings

Technical drawings are available for installing the Limoline self-locking feed front. Click on the link below to download the pdf file.

Requesting information?

Would you like to receive information about the Limoline feed front? We will be happy to tell you what we can do. Fill in your details here, and we will contact you.

Information request Limoline feed front
